Automated Analysis of Mitral Inflow Doppler using Convolutional Neural Networks


Abstract


Doppler echocardiography is commonly used for functional assessment of heart valves such as mitral valve. Currently, the measurements are made manually which is a laborious and subjective process. We have demonstrated the feasibility of using neural networks to fully automate the process of mitral v alve inflow measurements. Experiments show that the automated system yields comparable performance to the experts.

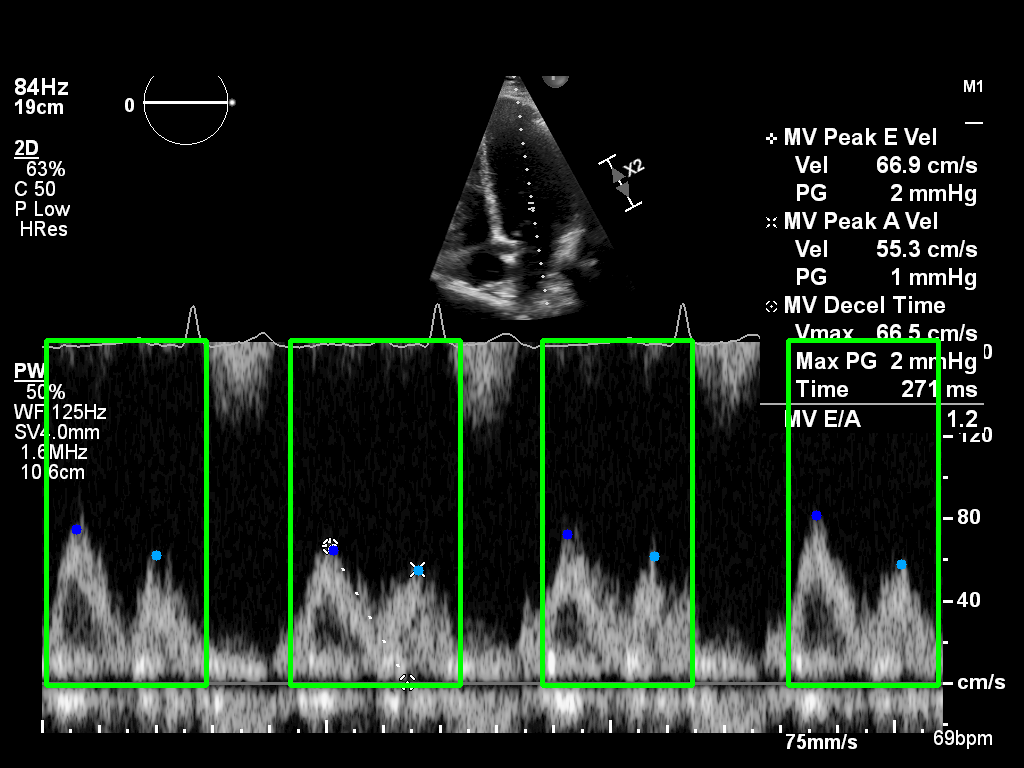

Mitral inflow example image

Introduction

Transmitral Doppler echocardiography has become the primary mode of noninvasive assessment of diastolic filling and function. The physiology of ventricular filling is reflected by the transmitral Doppler velocity profile which is comprised of two distinct components (waves); the E-wave (early phase ventricular filling) and the A-wave (atrial phase of ventric- ular filling)). Accurate analysis of Doppler echocardiographic images is therefore of crucial importance. Current clinical practice requires sonographers to manually perform velocity measurements on Doppler traces , which often results in high intra- and inter-observer variability. Automated systems could help standardise measurement protocol and reduce the amount of time spent on these measurements, thereby improving clinical workflow.



Method

A random sample of 500 echocardiographic examinations of different patients was extracted from Imperial College Healthcare NHS Trust’s echocardiogram database. The acquisition of the images was performed by experienced echocardiographers and according to standard protocols, using ultrasound equipment from GE and Philips manufacturers. Ethical ap- proval was obtained from the Health Regulatory Agency (Integrated Research Application System identifier 243023). Mitral inflow Doppler images were then annotated manually by expert cardiologists, selecting the E- and A-wave peak coordinates. DICOM-formatted images of varying image sizes images were zero-padded to the size of 1024x1024 pixels. The cardiologist’s annotations of the images were used as the ground truth (400 for training, and 100 for testing).
A schematic diagram of the full deep learning pipeline is illustrated in Figure 1. In order to detect/isolate heartbeats, Faster-RCNN object-detection architecture was used. All over- lapping bounding box predictions are processed using non-maximum suppression method. Predicted bounding boxes with probability over 70% are then passed to a landmark detec- tion model based on architecture proposed in (Wei et al., 2016). The predicted heatmaps are then used to extract the location of the E- and A-waves for all the heartbeats present in the Doppler image. TensorFlow was used to implement the models, running on Nvidia RTX3090 GPU.


Shih-En Wei, Varun Ramakrishna, Takeo Kanade, and Yaser Sheikh. Convolutional pose machines. In Proceedings of the IEEE conference on Computer Vision and Pattern Recog- nition, pages 4724–4732, 2016.


Entire Pipeline

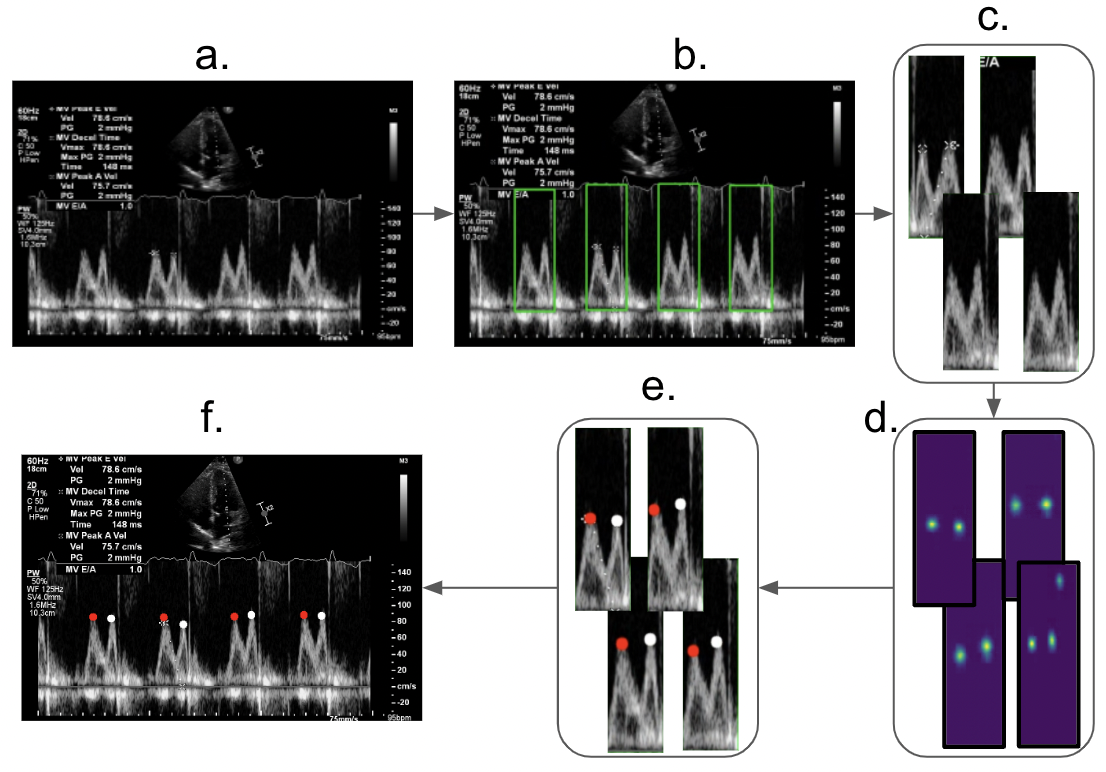

Figure 1: Full pipeline. a) Original Doppler image as input with no pre-processing. b) Faster-RCNN detects/seperates every heartbeat present in the image. c) Isolated heartbeats are cropped. d) Landmark detection model predicts heatmaps. e) E- and A-wave peak points are obtained from the heatmaps. f) Peak velocities from all heartbeats are put back on the Doppler image.

Results

Figure 2 upper row shows Bland-Altman plots for the pool of heartbeats across all patients. Bias for the automated measurements versus the expert measurements was less than 1 cm/s for both E- and A-wave peak velocities. The lower row shows the same plots, but for a patient-by-patient analysis, where all heartbeats present in a Doppler image for each patient are averaged. The standard deviation in both beat-by-beat and patient-by-patient analyses for the A-wave was larger; indicating that this peak was harder to detect/measure than the E-wave. The image datasets, code, and trained networks generated/developed in this study are made freely-available for future benchmarking.


Plots

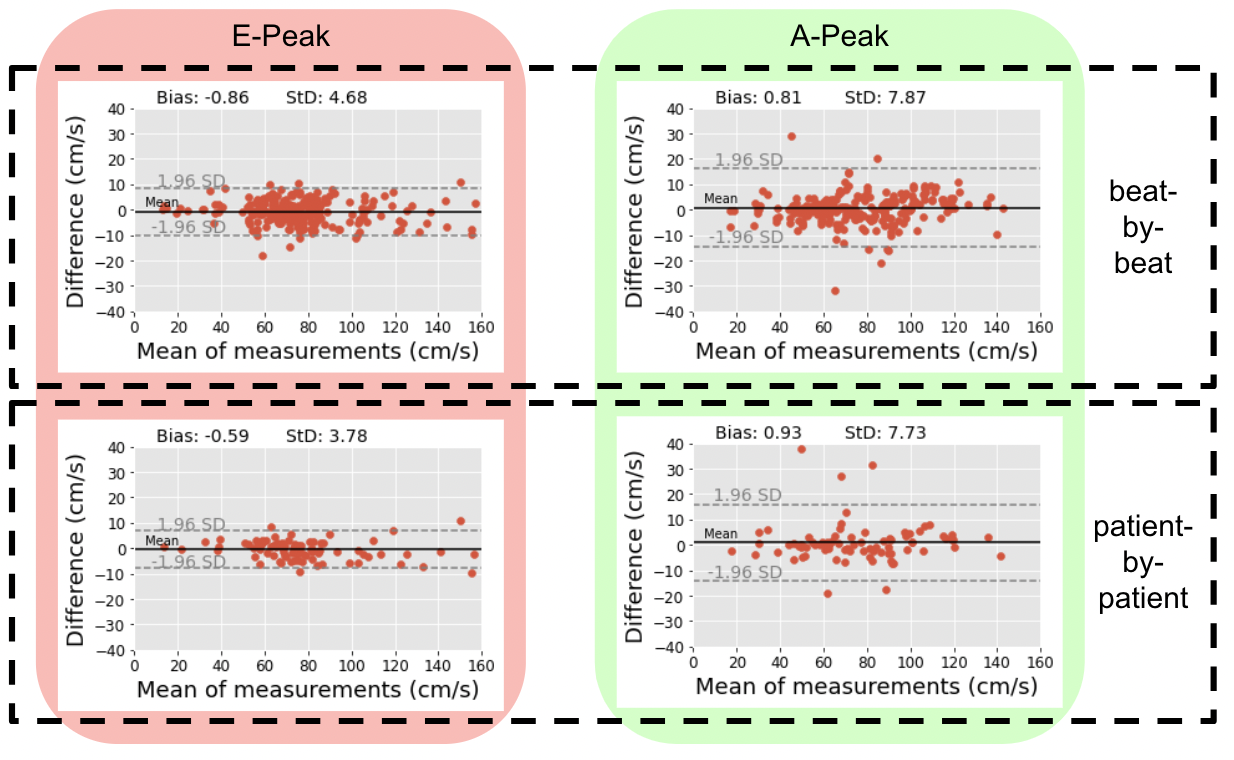

Figure 2: Bland-Altman plots for automated vs. manual measurements.

Request Access to the project dataset

We aim to make the dataset available for research purposes soon.
