Project Introduction

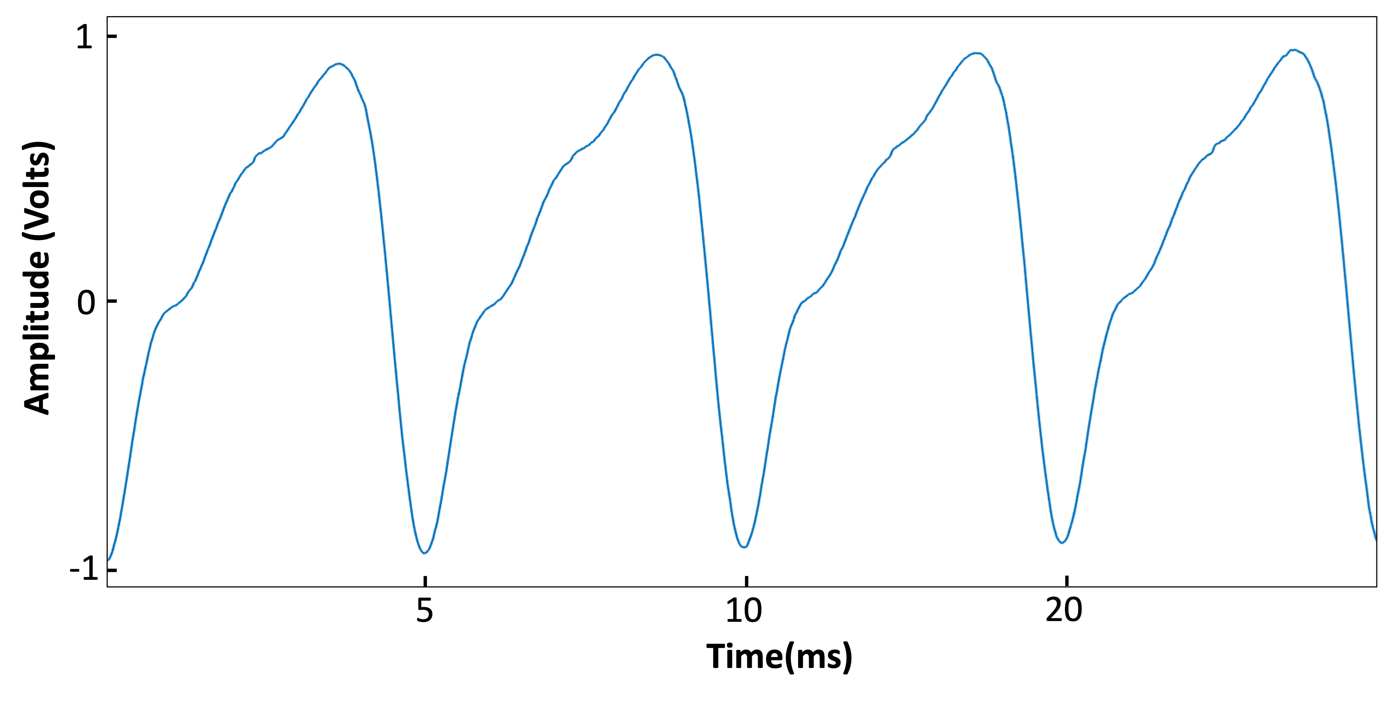

Laryngeal bioimpedance can deliver unique information about human
voice and phonation. This project is comprised of two aspects: the development of a
self-calibrating laryngeal bioimpedance measurement system and its application in voice
features extraction. The implementation of Artificial Neural Networks is focused on the
near real-time classification of
voice acts in the distinction between speech and singing. One of the main contributions
of this project is represented by the creation of a unique dataset of laryngeal bioimpedance
measurements for the training of Artificial Neural Networks. The development of a self-calibrating
measurement system, alongside the derived dataset, aims to make the technology more employed in voice
disorder evaluation and pre-diagnosis as well as broadening the spectrum of possible applications.
Dataset

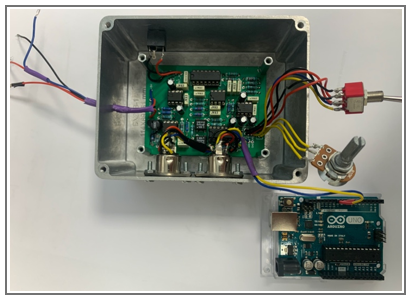

A laryngeal bioimpedance measurement system developed by the team was used to record voice acts from different users.
The dataset is comprised of two sections:
singing voices and speaking voices.
Network Architecture
For the processing of the data, we employed the use of Mel Frequency
Cepstrum Coefficients (MFFC). This delivers a series of frequency coefficients
over 20 frequency bands. The resulting array is the data being fed to the network.
The network is therefore comprised as follows:
Input layer: has 20 Neurons
1 Hidden layer: has 40 Neurons
Output Layer: has 1 Neuron for binary classification

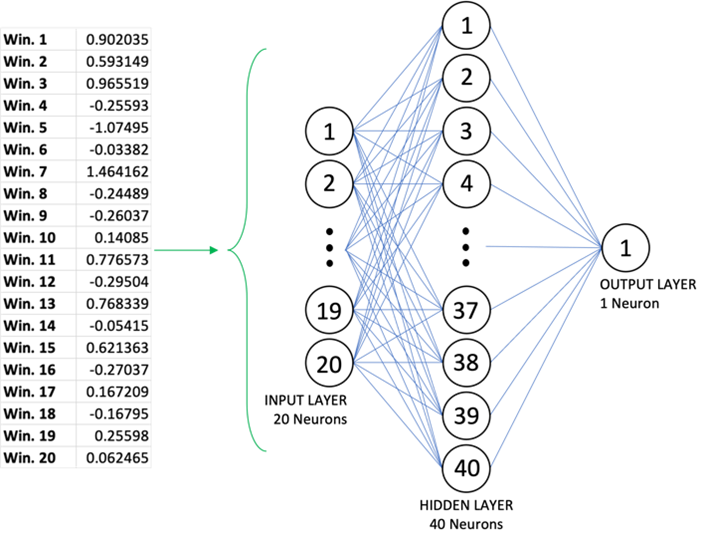

The figure on the right shows the network architecture.
Implementation
The models were implemented in Python within the TensorFlow 2.0 framework.
Performance assessment

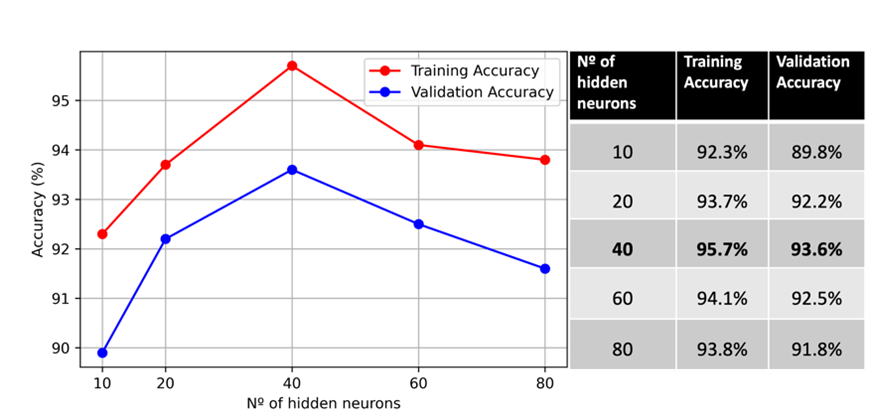

Accuracy comparison by the number of neurons for the hidden layer

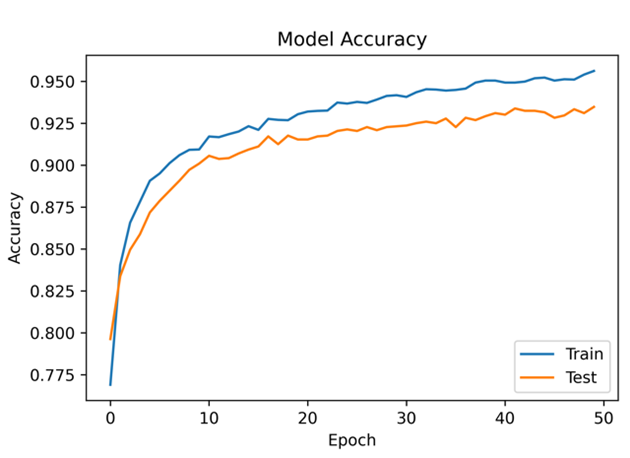

Model accuracy for 40 hidden neurons

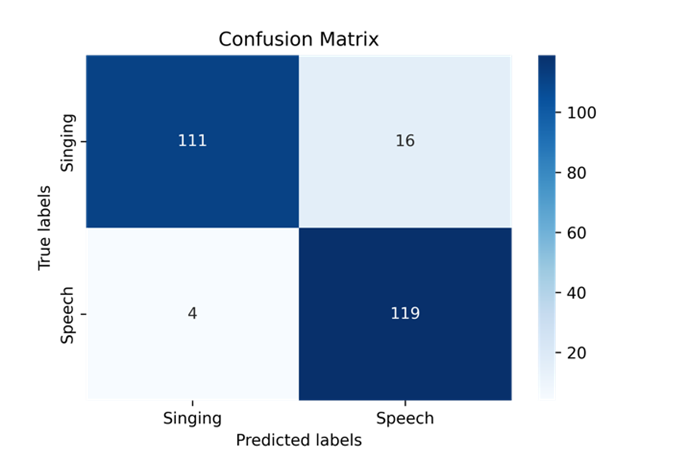

Confusion matrix for “unseen” data
